Surface Connection

This is a script under development, intended to be used for creating the “fold” between the floor and roof landscapes. The script needs some further work, I especially would like to create fillets between the existing surfaces and the new connection.

This is what the script does:

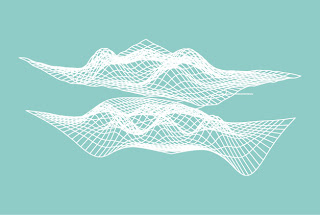

input roof and floor surfaces
input curves to define start of connection
project curves to surfaces
create vertical curves along start curves

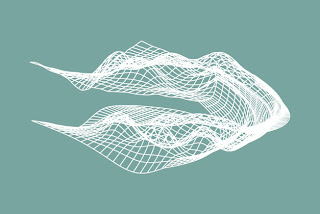

create surface from network of curves
trim (and fillet) surfaces

// download connection script: surface-connect.rvb
